HangBon CN55 Pneumatic Coil Nailer
25–55 mm coil nailer for timber fastening, with 300–400 nails per coil capacity.
Ask us about availability and the right configuration for your work.
KNOW YOUR TOOL
The details
that matter.

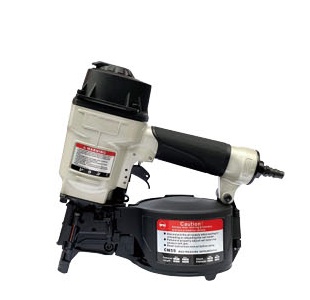

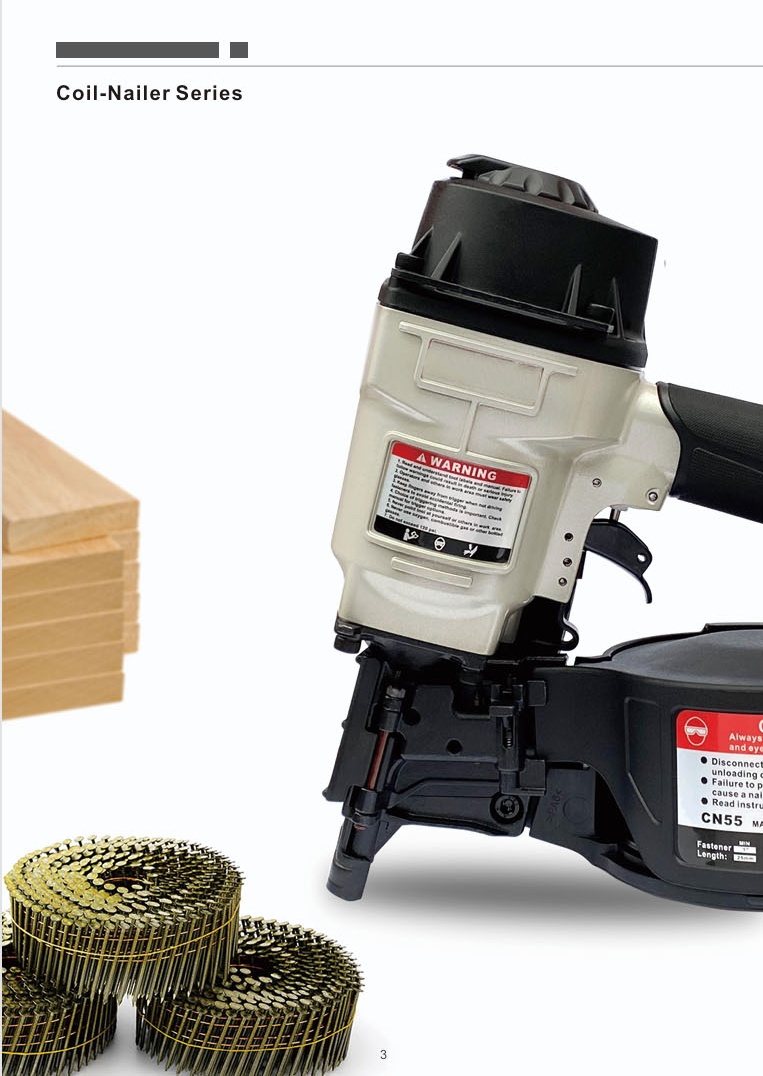

HangBon CN55 Pneumatic Coil Nailer
The HangBon CN55 is an air-powered coil nailer for pallet assembly, wooden crates, packaging, framing, decking and fencing. Its coil magazine supports repeated fastening work with compatible nails.
This model accepts 25–55 mm nails and has a listed tool weight of 2.7 kg. Compare the nail dimensions and required air pressure with your existing setup before purchasing.
Key features
- Compatible nail length: 25–55 mm.
- Magazine capacity: 300–400 nails per coil.
- Compressed-air operation for workshop and site use.
- Applications listed by the supplier: pallet assembly, wooden crates, packaging, framing, decking and fencing.
Specifications
| Model | CN55 |
|---|---|
| Tool type | Pneumatic coil nailer |
| Power source | Compressed air |
| Nail length | 25–55 mm |
| Nail shank diameter | 2.1–2.3 mm |
| Nail head diameter | 5.0–5.7 mm |
| Magazine capacity | 300–400 nails per coil |
| Operating air pressure | 6–8 kgf/cm² |
| Tool weight | 2.7 kg |
| Dimensions (supplier listing) | 300 × 275 × 130 mm |
Before you order
Requires a compatible compressed-air supply. Check the air fitting and fastener specifications against your equipment before ordering.
Only items explicitly listed in your order are included. Confirm the accessory and fastener contents for your chosen configuration.
Follow the manufacturer’s operating instructions and use suitable eye and hearing protection. Disconnect the air supply before maintenance.
